Carport_4P
The STR_GM_4P is a south facing open field ground mount system with minimum clearance of 1000 mm
TECHNICAL DATA
The STR_GM_4P is a south facing open field ground mount system with minimum clearance of 1000 mm. The aerodynamic design and on-field ruggedness over decades stands testimony to the mounting systems strength.
Flat Roof On Commercial, Open Field And Residential Buildings
Application Area
15 years
System Warranty

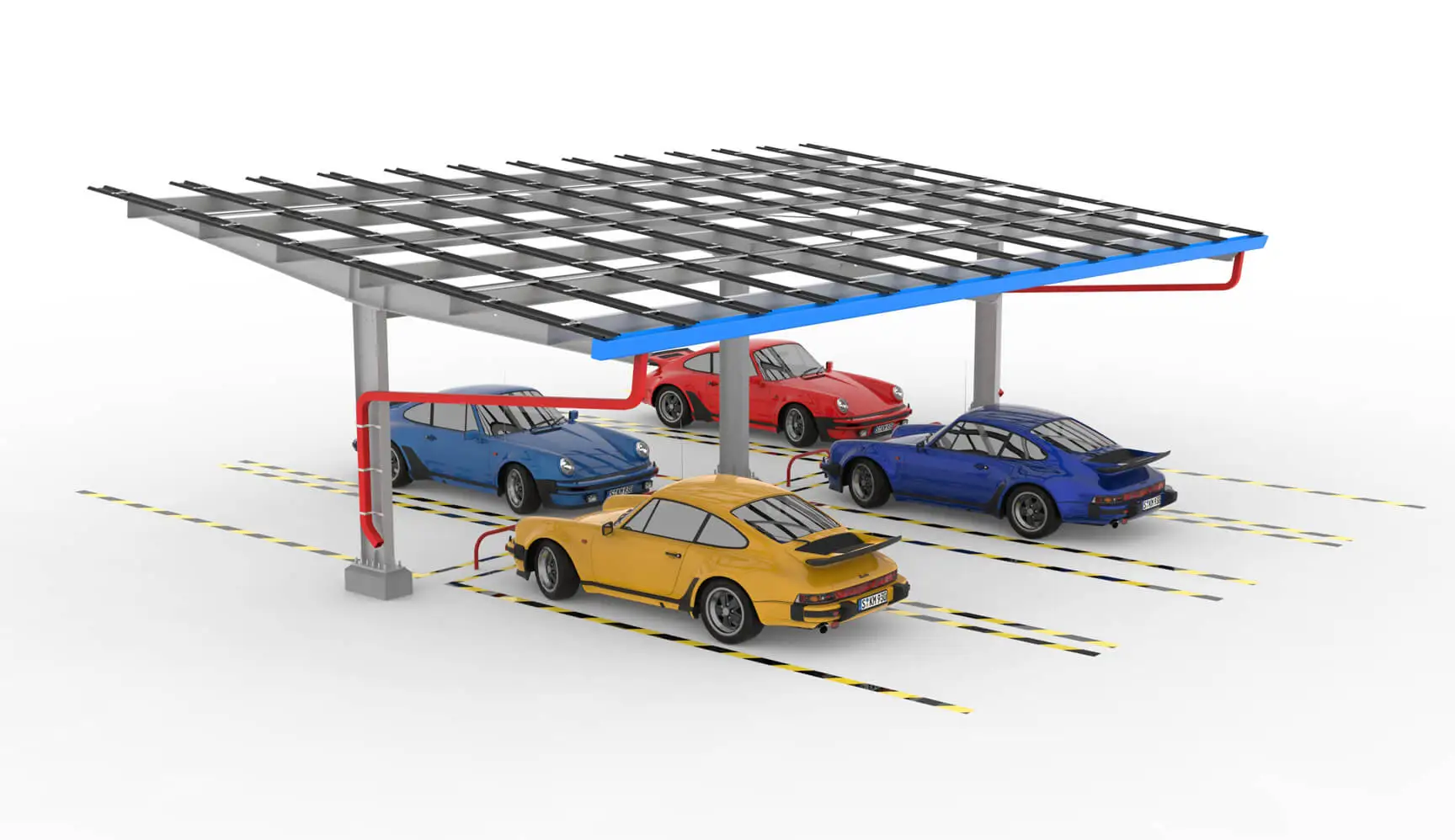

Double Support Carport PV Mounting System
System
Bitumen, Concrete, Gravel, Tiles
Roof Covering
SPECIFICATIONS OF THE PRODUCT
HDG / Galvalume
Non Penetrating
10 & 15 Degree
50m/s
Additional information
| System Orientation | South |
|---|---|
| Structure Tilt (º) | 5° , 10° |
| Material | Aluminium 6063 T6, Hot Dipped Galvanized Steel or Pregalvanized |
| Minimum Ground Clearance | 2500 mm/3000 mm/ 3500 mm |
| Wind Speed | 60 m/sec |
| Type | PV modules with frame height between 30-50 mm |
| Module Size (max) | Length: any; Width: any |
| Orientation | Multiple Landscape/Multiple Portrait |
| Wind Load | Certified by ABS Industrial Verification (India) Pvt. Ltd. |
| Layout and Ballast Plan | Provided by Strolar® |
