Carport_6P

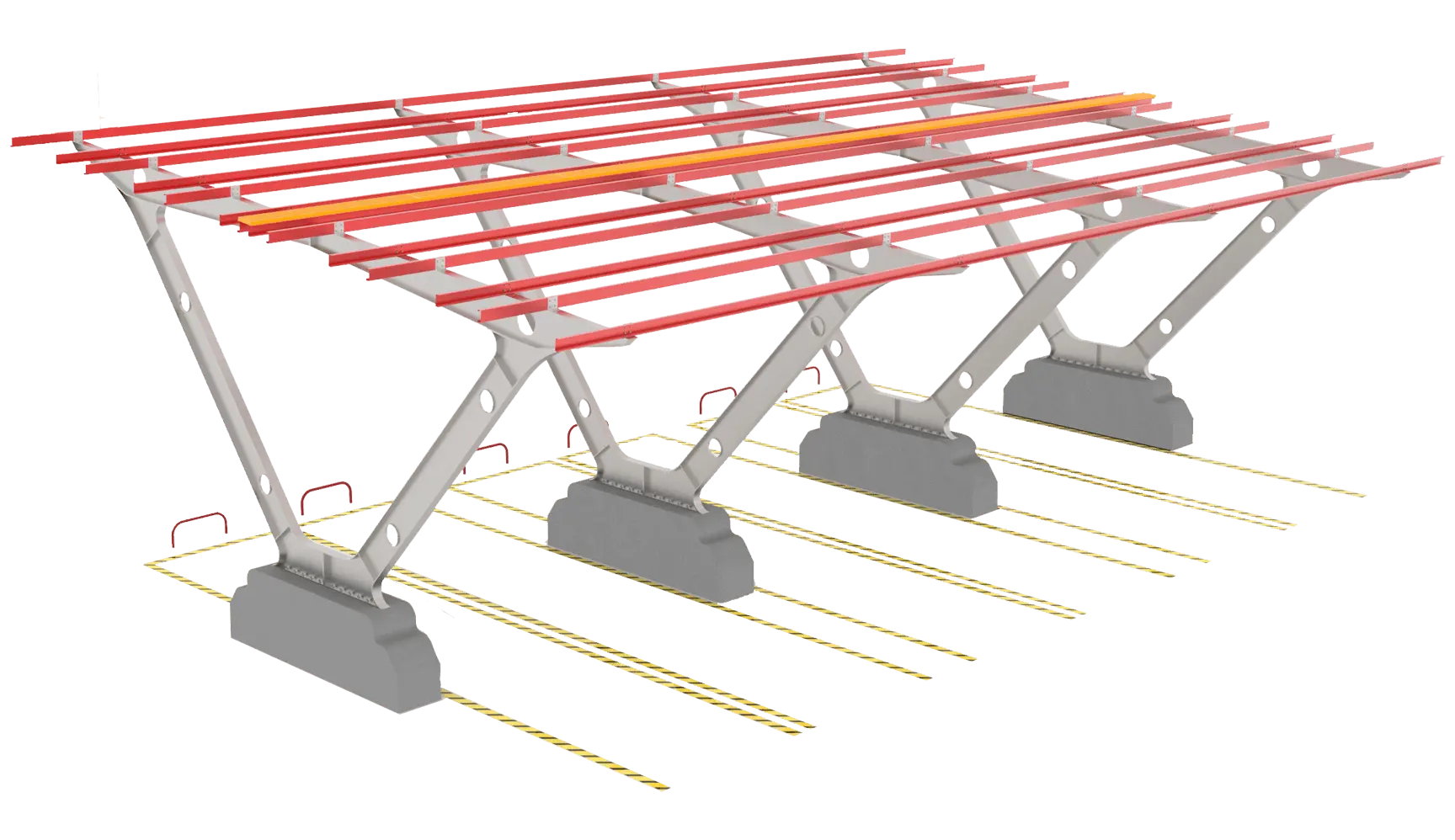

The STR_CP_6P south-facing open field carport system features a minimum clearance of 2500 mm, aerodynamic design, and exceptional on-field ruggedness. Proven strength and reliability for decades.
TECHNICAL DATA
The aerodynamic design and on-field ruggedness over decades stands testimony to the mounting systems strength.
Commercial and open field
Application Area
15 years
System Warranty
Single or Double Support Carport PV Mounting System
System
Bitumen, concrete, gravel, tiles, open field
Ground Cover
SPECIFICATIONS OF THE PRODUCT
HDG / Galvalume
Modular
5 & 10 Degree
50m/s
Additional information
| System | Single or Double Support Carport PV Mounting System |
|---|---|
| System Warranty | 15 years |
| Application Area | Commercial and open field |
| Ground Cover | Bitumen, concrete, gravel, tiles, open field |
| System Orientation | South |
| Structure Tilt (º) | 5° , 10° |
| Material | Aluminium 6063 T6, Hot Dipped Galvanized Steel or Pregalvanized |
| Minimum Ground Clearance | 2500 mm/3000 mm/ 3500 mm |
| Wind Speed | 60 m/sec |
| Type | PV modules with frame height between 30-50 mm |
| Orientation | Multiple Landscape/Multiple Portrait |
| Wind Load | Certified by ABS Industrial Verification (India) Pvt. Ltd. |
