GM 2P

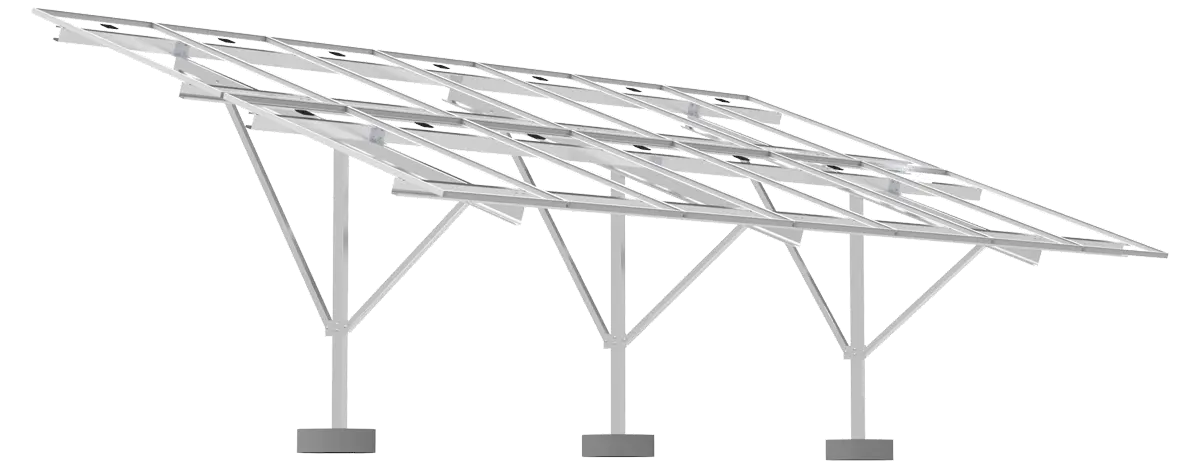

The STR_GM_2P is a south facing open field ground mount system with minimum clearance of 500 mm.
TECHNICAL DATA
The STR_GM_2P is a south facing open field ground mount system with minimum clearance of 500 mm. The aerodynamic design and on-field ruggedness over decades stands testimony to the mounting systems strength.
On Industrial, Agricultural and Commercial Buildings
Application Area
10 years
System Warranty
in-situ casted Ground Mounted PV Mounting System
System
Bitumen, Soil, Open Field
Ground Cover
SPECIFICATIONS OF THE PRODUCT
HDG / Galvalume
Non Penetrating
10 & 15 Degree
50m/s
Additional information
| System Orientation | South |
|---|---|
| Structure Tilt (º) | 20º |
| Material | Powder Coated Hot Dipped Galvanized Steel for column bracket and Aluminium 6063 T6 for the balance structures |
| Minimum Ground Clearance | 500 mm |
| Wind Speed | 47 m/sec |
| Type | PV modules with frame height between 30-50 mm |
| Module Size (max) | Length: any; Width: any |
| Orientation | Double Portrait |
| Wind Load | Certified by ABS Industrial Verification (India) Pvt. Ltd. |
| Ground Slope | max 3º without additional measures |
