GM 4L

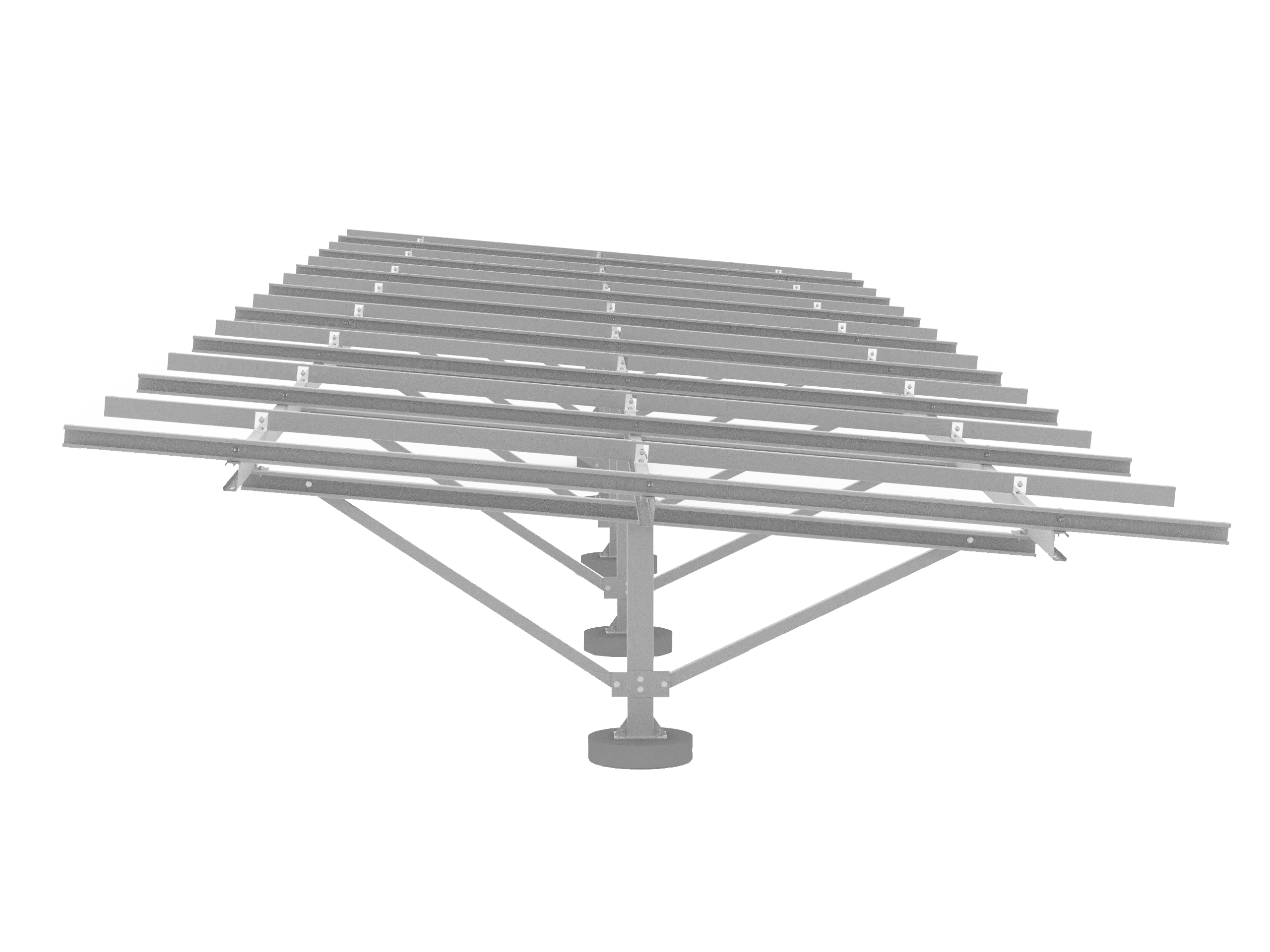

The STR_GM_4L is a south-facing, open field ground mount system with a minimum clearance of 500 mm. Its aerodynamic design and robust construction ensure decades of reliable performance in any weather condition.
TECHNICAL DATA
STR_GM_4L offers the strength and resilience needed to support your solar panels efficiently and securely. Elevate your solar projects with a mount system that combines innovation with long-term reliability.
25 years
Design Life
15 years
Warranty
Ramming / Concrete Filling / Screw Pile
Anchoring
Fully integrated grounding
Grounding
SPECIFICATIONS OF THE PRODUCT
HDG / Galvalume
Ramming / Concrete Filling
Tilt Angles
55m/s
Additional information
| Tilt Angles | 5° to 35° |
|---|---|
| Mounting Type | Ground Mount with max 6° undulation |
| Material | HDG / Galvalume Steel |
| Grounding | Fully integrated grounding |
| Module capacity | All Major 72 and 144 cell modules |
| Mechanical Installation Rates | A four Person working a 7.5 hour day can install up to 600 modules/day |
| Module Clearance | 500 mm |
| Anchoring | Ramming / Concrete Filling / Screw Pile |
| Warranty | 15 years |
| Design Life | 25 years |
| Packaging | Wooden and PP cover |
