H70

Compact and lightweight composite Aluminum and Steel mounting systems for commercial scale ground mount open field projects.

TECHNICAL DATA

The STR_IR_TPFH70 is a south facing open field ground mount system with minimum clearance of 1000 mm. The aerodynamic design and on-field ruggedness over decades stands testimony to the mounting systems strength.

Pitched Metal Sheet Roofing
Application Area

5 years
System Warranty

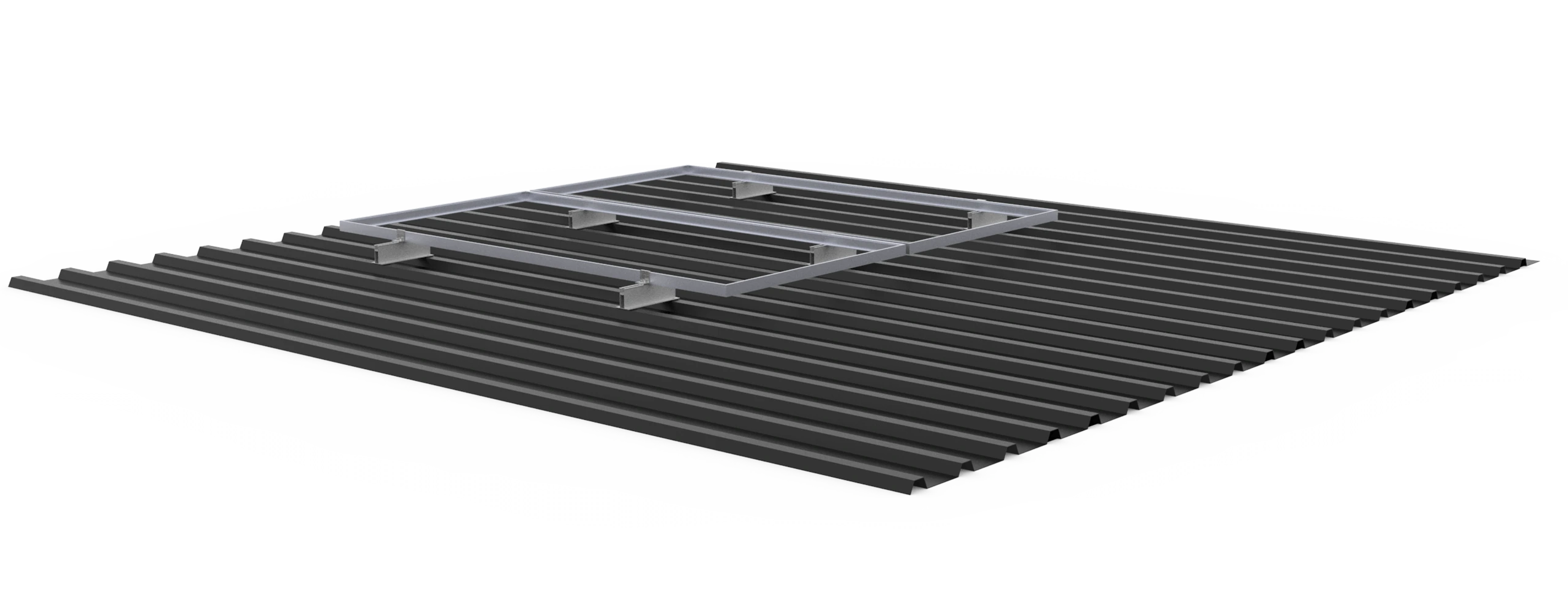

PV Mounting System For Trapezoidal Metal Sheet
System

Trapezoidal Metal Sheet Made of Steel and Aluminium
Roof Covering

SPECIFICATIONS OF THE PRODUCT

HDG / Galvalume

Durable, corrosion-resistant steel coating for construction and automotive. Recyclable and energy-efficient.

Non Penetrating

No drilling, preserves surface integrity. Quick, versatile, and compliant. Ideal for roofs, events, and more.

10 & 15 Degree

Solar panel tilt angles. 10° captures more winter sunlight. 15° balances year-round performance. Choose based on location and goals.

50m/s

Destructive storm speed. Causes damage, flying debris, power outages. Safety measures essential.

Additional information

System Orientation

South

Profile Height

70 mm

Orientation

Portrait

Structure Tilt (º)

Flush mount

Roof Slope

Maximum 45º

Module Size (max)

Length: any; Width: any

Rib Distance

Length made available on request

Material

Stanless Steel, Aluminium 6063 T6, EPDM

Type

PV modules with frame height between 30-50 mm

Wind Load

Certified by ABS Industrial Verification (India) Pvt. Ltd
